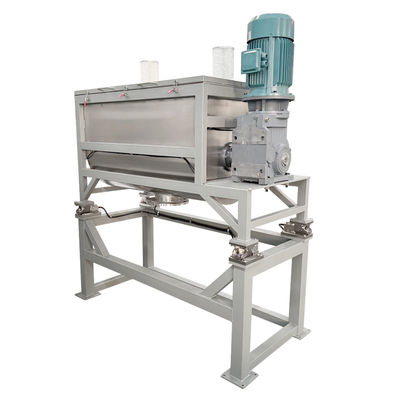

Ribbon Blender

Product description

The helical ribbon mixer is a highly efficient and versatile equipment for mixing powders and granules. With its unique structural design, it ensures high uniformity of mixing and has no dead corners for residue, guaranteeing stable mixing results from batch to batch. This model is easy to operate and maintain, and can be fully enclosed for operation. It is widely used in industries such as chemical engineering, food, pharmaceuticals, and new energy, and is an ideal industrial equipment for large-scale and high-precision mixing production.

Working principle

The working principle of the helical mixer is based on its unique dual helical stirring structure. During operation, the outer helical belt pushes the material from both ends towards the center, while the inner helical belt moves from the center to both ends, creating a strong bidirectional convection circulation. The material simultaneously undergoes cross-mixing and shearing in both radial and axial directions, achieving rapid and uniform mixing in a short period of time, with no dead corners.

Product features

1. Uniform mixing: The bidirectional spiral blades generate three-dimensional convection, ensuring high mixing accuracy.
2. No dead corners: The unique structure ensures that the materials fully participate in the mixing process, with no residues.
3. Wide applicability: It can effectively handle both powder and paste, with strong versatility.
4. Stable and efficient: The structure is sturdy, energy consumption is low, and it is suitable for continuous large-scale production.
5. Integrated functions: It can be equipped with a jacket for heating and cooling to achieve processes such as drying and reactions.
6. Easy to clean: The inner surface is smooth, the opening rate is high, and it meets hygiene standards.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500

Product details

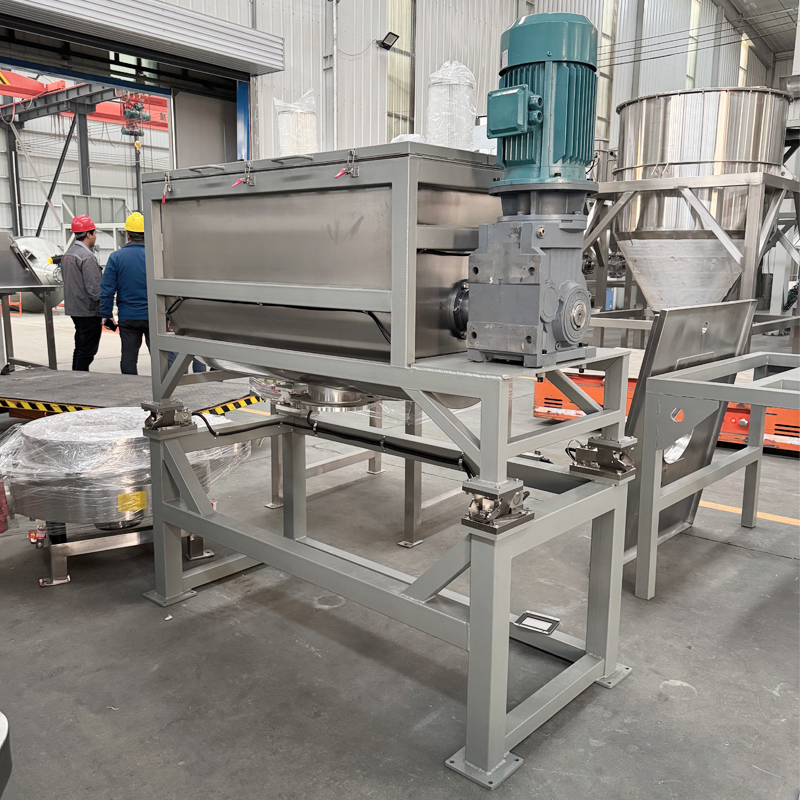

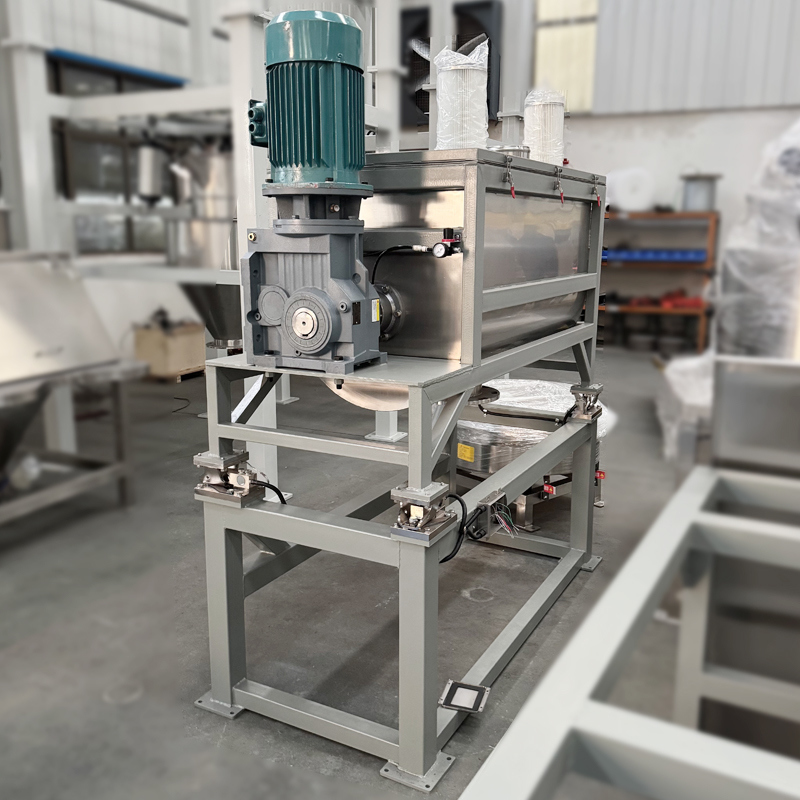

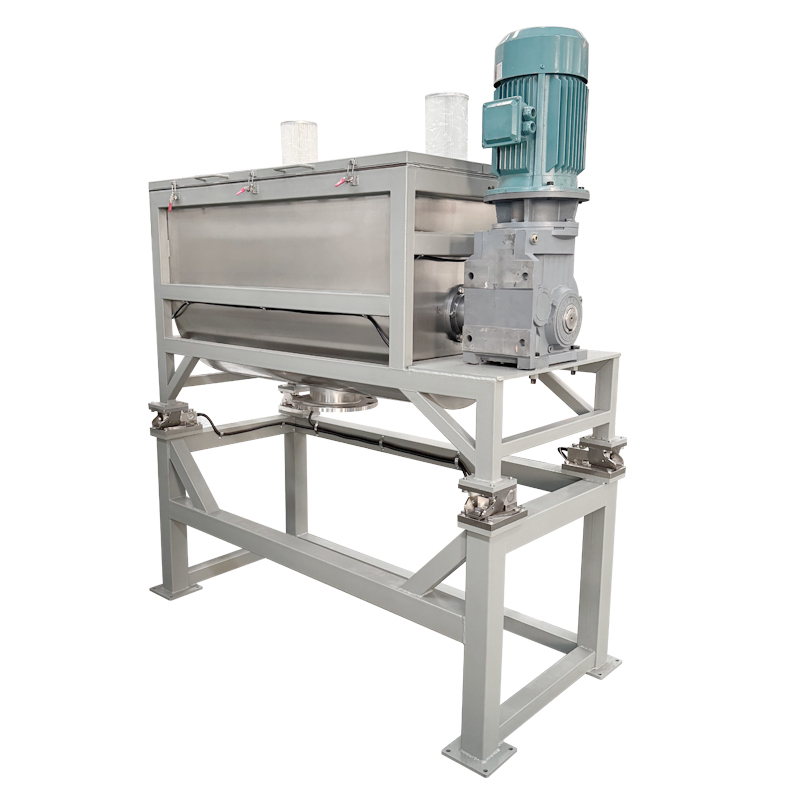

Product shows

Product application

Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
