Gyratory Vibrating Screen
Product description
The rotary screen is a screening equipment that uses a motor to drive the screen body to perform rotary motion, causing the material to be pushed in a spiral motion on the screen surface under the action of centrifugal force and gravity. Fine particles penetrate the screen and are discharged, while coarse particles are discharged from the end. Its efficiency can be optimized by adjusting the rotational speed and amplitude. It features high screening accuracy, large processing capacity, compact structure, and adaptability to various materials. It is widely applied in particle classification operations in industries such as mining, chemical engineering, and food.
Working principle
The rotary screen is driven by a motor to make the screen body perform a rotary motion (a combined motion of horizontal circular motion and vertical vibration), causing the material to be pushed in a spiral motion on the screen surface under the action of centrifugal force, gravity and inertial force. Fine particles penetrate the screen and are discharged, while coarse particles are discharged from the end. The movement trajectory of the material can be controlled by adjusting the rotational speed, amplitude and the inclination Angle of the screen surface, achieving precise classification of materials of different particle sizes.
Product Features
- Compound motion efficiency improvement: The screen body performs a circular motion, and the material advances in a spiral manner. This results in a high screening rate and large processing capacity, significantly enhancing efficiency compared to traditional screens.
- Adjustable parameters for precise classification: By adjusting parameters such as rotational speed, amplitude, and screen surface inclination Angle, the movement trajectory of materials can be flexibly controlled to achieve high-precision screening of materials.
- Wide adaptability to anti-clogging and wear resistance: It has a good screening effect on damp and sticky materials. Combined with wear-resistant screen mesh, it reduces clogging holes and is suitable for multiple scenarios such as mining, chemical industry, and food.
- Compact and durable structure: The integrated design takes up little space. The main body is made of wear-resistant steel, which has strong impact resistance and a long service life.
- Low noise and easy maintenance: The elastic element connected to the motor reduces noise. The detachable screen is easy to replace and has low daily maintenance costs.
Product parameter
| Model |
Screen Surface |
Screen Deck/
Layer No. |
Feeding Size
(mm) |
Amplitude
(mm) |
Frequency
(r/min) |
Power
(kW) |
Width
(mm) |
Length
(mm) |
| BPH1230 |
1200 |
3000 |
1-3 |
<50 |
75-90 |
1450 |
5.5 |
| BPH1236 |
1200 |
3600 |
1-3 |
<50 |
75-90 |
1450 |
5.5 |
| BPH1530 |
1500 |
3000 |
1-3 |
<50 |
75-90 |
1450 |
5.5 |
| BPH1536 |
1500 |
3600 |
1-3 |
<50 |
75-90 |
1450 |
5.5 |
| BPH1836 |
1800 |
3600 |
1-3 |
<75 |
75-90 |
750 |
7.5 |
| BPH2040 |
2000 |
4000 |
1-3 |
<75 |
75-90 |
750 |
11 |
Schematic diagram

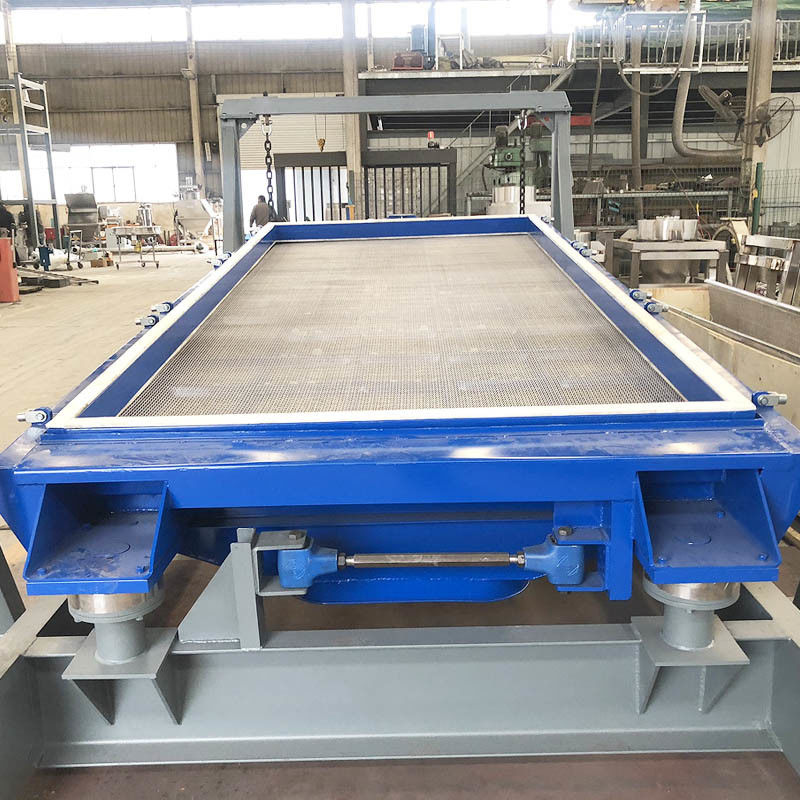

Detail display

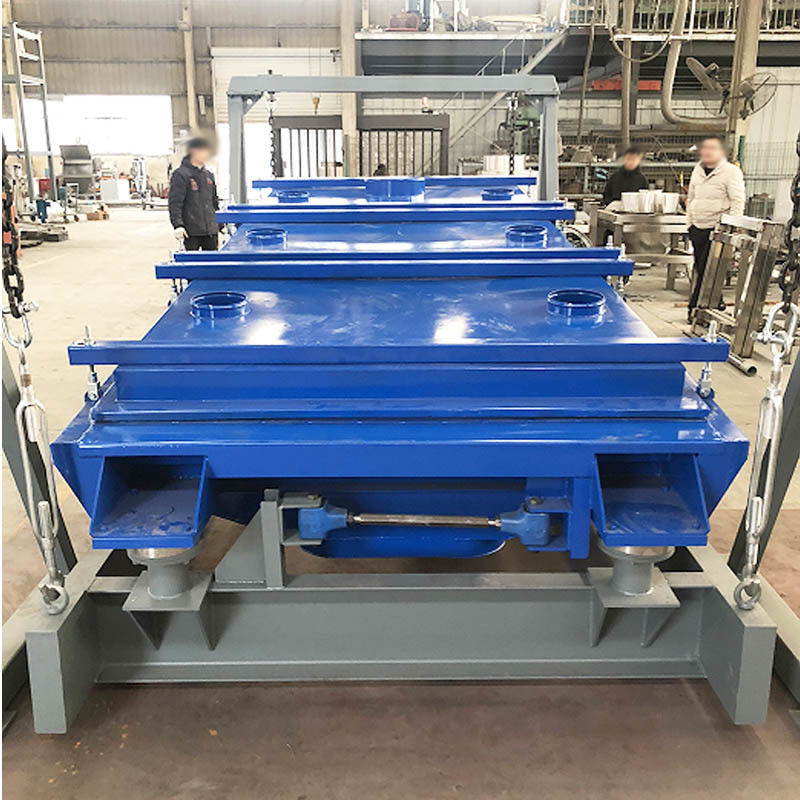

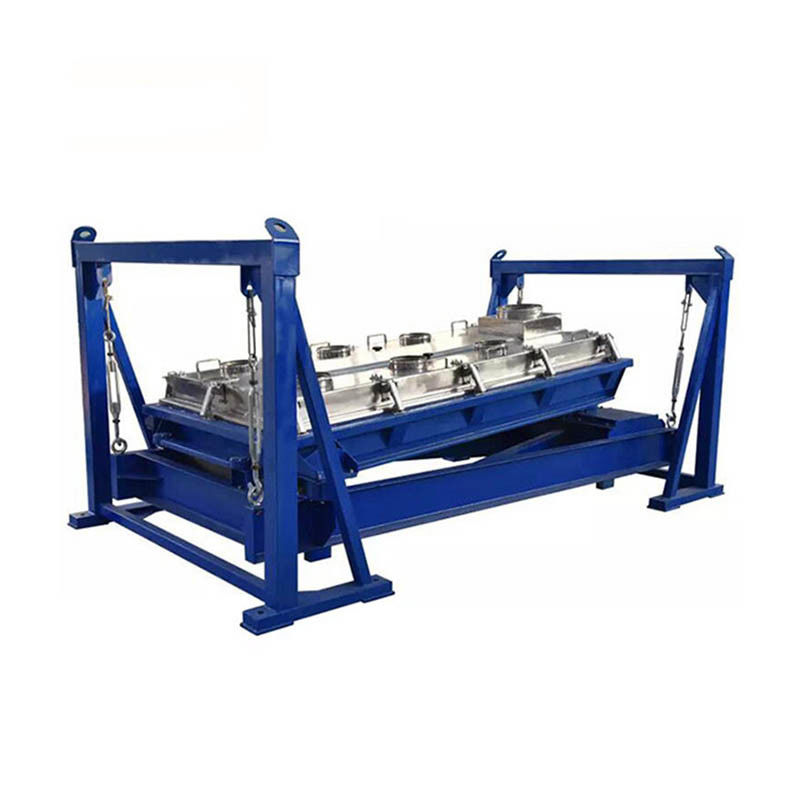

Product display
Packaging & Shipping
Why Choose us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
